PAGANI ZONDA R

Technical Specifications

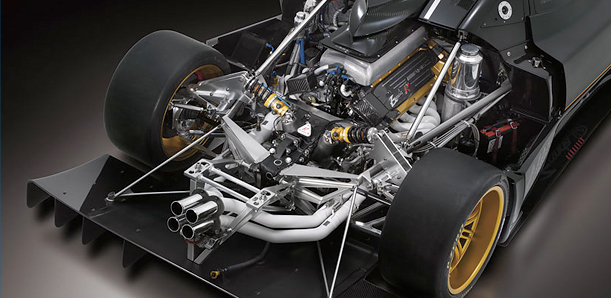

• Engine: Mercedes-Benz AMG - M120 -
   12 cylinder V 60°, 48 valves; displacement
   5987 ccm, dry sump.
• Max. Power:(kW) hp/rpm: (551) 750 / 7.500.
• Max. Torque:Nm/rpm: 710/5.700.
• Stroke:80,20 mm.
• Bore:89,00 mm.
• Traction control:12 Stage - Bosch Motorsport
   traction control system.
• Intake:Single throttle bodies, mechanically
   operated.
• Exhaust system:Hydroformed Inconel,
   ceramic coated.
• Transmission: Longitudinal mid engine;
   rear wheel drivewith self-locking differential.
• Gearbox: XTRAC 672 bespoke magnesium
   casing gearbox,6 speed sequential dog
   gearchange with Automac Engineering
   AMT system.
• Carbon-ceramic brakes:4 ventilated Brembo
   disks, hydraulic power brake.12 Stage - Bosch
   Motorsport Race ABS.
• Discs:Front 380x34 mm 6 piston caliper;Rear
   380x34 mm 4 piston caliper.
• Wheels: Forged alloy APP wheels; 19” front,
   20” rear.
• Tyres: Pirelli P Zero Zonda R: front 255/35/19;
   rear 335/30/20.
• Suspensions: 4 independent wheels with double
   A-arm;Forged Avional suspension arms; pull rod
   helical springs and Öhlins adjustable shock
   absorbers.

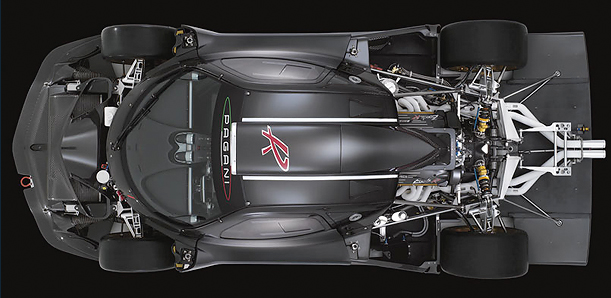

• Structure:Central carbon-Titanium chassis,
   Engine is a stressed member;front and rear
   Cr Mo space frames;bodywork carbon fiber
   MD System.
• Dimensions:Length 4886 mm; Width 2014 mm;
   height 1141 mm; Wheelbase 2785 mm;
   Dry weight 1070 kg.
• Safety:Roll cage in Cr Mo steel; carbon fibre
   seats HANS compatible;five point harness.
• Performance:0-100 km/h in 2,7 sec.;
   Top speed: > 350 km/h.
• Weight-to-Power ratio: 1,43 kg/hp.
